United States Patent 4,869,331
Borchard Sept. 26, 1989

Leaf Spring

Inventors: Borchard; John S. (97-A Lowell Ave., Newton, MA 02160).
Appl. No.: 306,693
Filed: Feb. 6, 1989
Intl. Cl.: G01G 3/08; F16F 1/18; F16F 1/20;
U.S. Cl.: 177/229.; 267/47.;
Field of Search: 158-165;47;260

References Cited

U.S. Patent Documents

1,904,188 Apr., 1933 Zahm et a;/
4,053,729 Oct., 1977 Reiter
4,738,324 Apr., 1988 Borchard

Primary Examiner: Miller, Jr.; George H.

Abstract

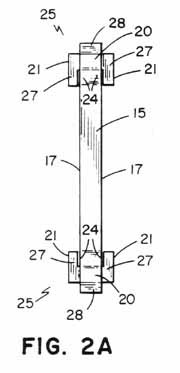

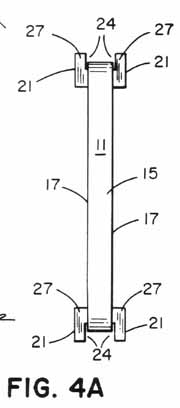

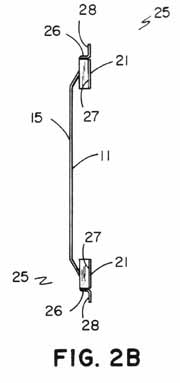

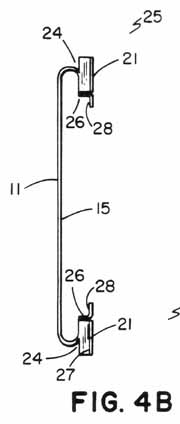

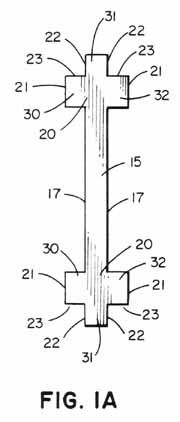

A leaf spring made of a flat, thin, metallic strip comprised of an elongated flexible member with two parallel sides terminating at either end into flat rectangular, crosslike or circular shapes with a width approximately twice the width of the strip at its midpoint. The ends are crimped or cold pressed downward and then outward near their edges to form flanges. The crimped or pressed ends become each foot of the leaf spring.

15 Claims, 26 Drawing Figures
