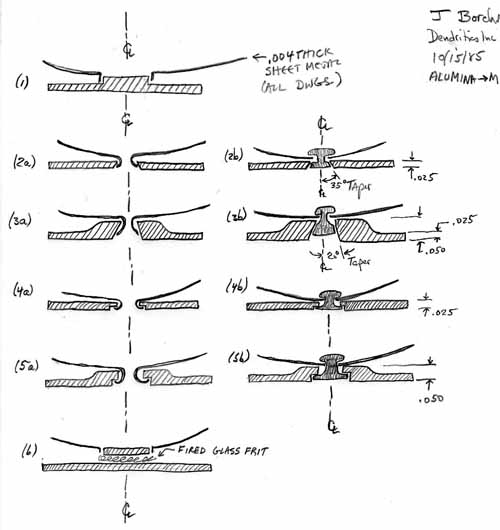

This from 1985 was a study of how to attach Alumina Ceramic to the metal spring material

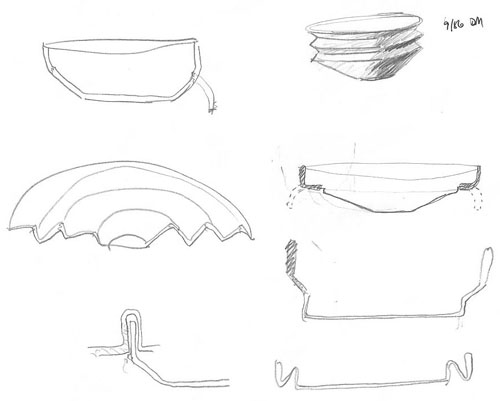

A major concern with this plate design was how to create separate flexible and unflexible zones.  Here are some plans involving horizontal bellows.
