It can be quite amazing to someone not familiar with engineering production how much tooling and engineering work is involved in something as seemingly simple as a scale.  Here are some of the jigs, fixtures, and tools which we developed in the process of making our little scales.

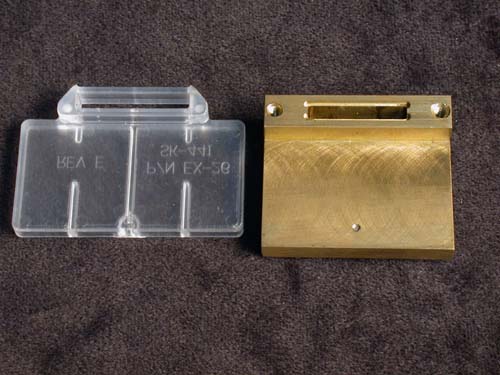

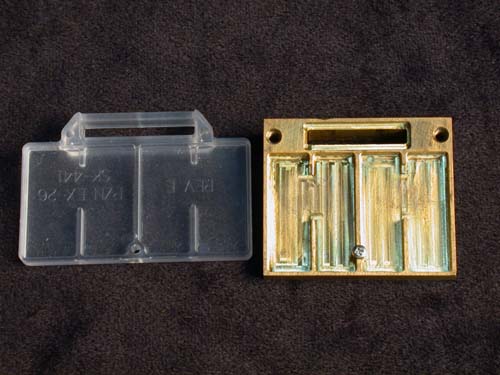

These were brass and (on the left) molded versions of a conductive shield designed to cover the critical circuit oscillator regions.  We later discovered a way to avoid using it.  After making the mold, of course.

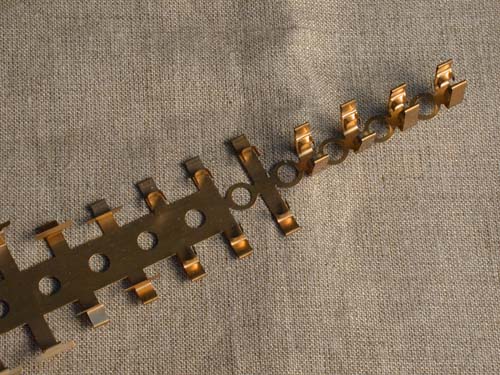

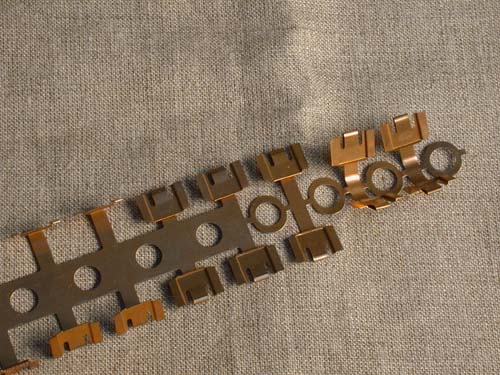

Tooling for the D125/D500 springs (above) and the G50/G100 springs (below)
